日東工器

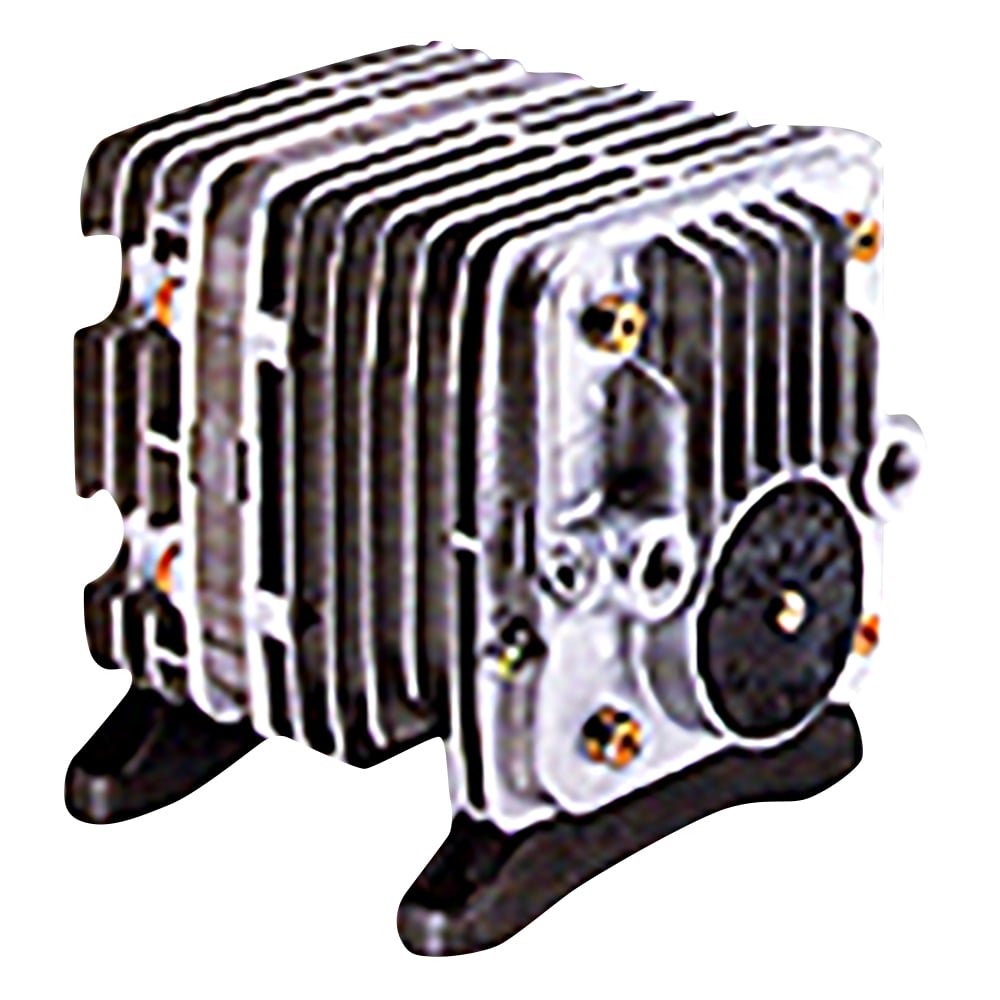

Linear vacuum pump 60L/min VP0940 1 unit
Linear vacuum pump 60L/min VP0940 1 unit
Regular price
¥76,780
Regular price
Sale price
¥76,780
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
It uses a linear drive free piston system in which the piston alone moves smoothly back and forth inside the cylinder in which the motor and compression unit are integrated.
It is compact, quiet, and lightweight.
Oil-less structure that does not require lubrication. Displacement (L/min): 60
Ultimate vacuum (kPa): -53.3 (-400mmHg)
Rated power: AC100V
Power consumption: 95w
Current: 2.4/2.7A
Rated time: Continuous
Service life: 10,000 hours
Inlet/outlet size: Rc1/4 (PT1/4)
Rated frequency: 50/60Hz compatible
Coil insulation class: Class B equivalent
Installation dimensions (length x width): 102 x 130 mm
Size: 150 x 193 x 154 mm
Product weight: 4.55kg
Lead wire length: 150±15mm *Outlet plug is not included.
