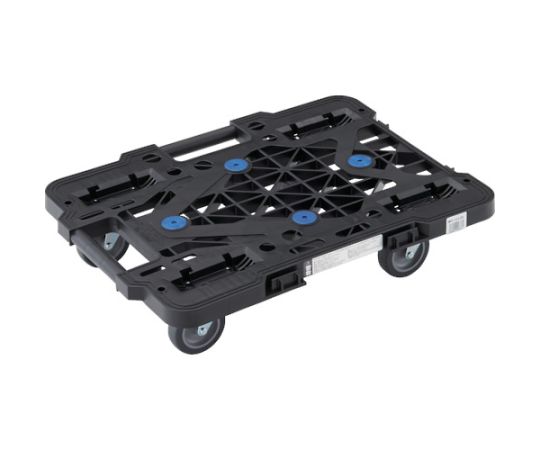

The mesh structure makes it lighter and easier to move than conventional products.

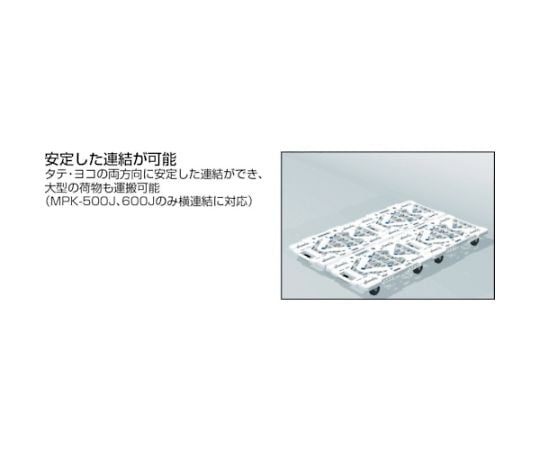

Can be connected vertically and horizontally. (Vertical connection is only possible with all-swivel caster models and all-swivel caster models with stoppers.)

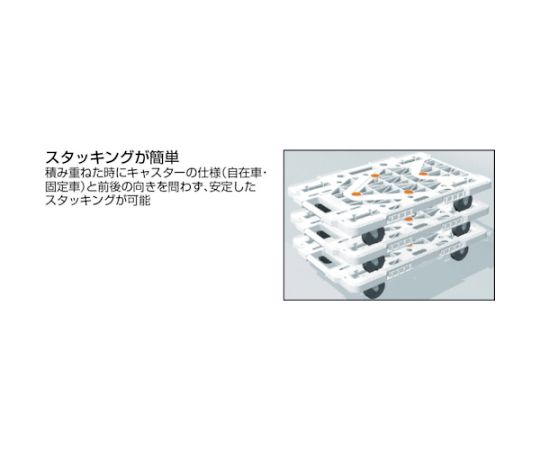

Can be stacked.
The cargo bed has a sturdy mesh rib structure.
It is highly durable and resistant to chemicals and solvents.
There are four anti-slip rubber pads on the top of the table.
The use of elastomer resin wheels reduces tire marks.
Corner stoppers for the Route Van MP-600 can be installed. (MPK-600 series)
Transportation industry, factory work.
Transportation work in a logistics warehouse. Uniform load (kg): 100
Color: Black
Length (mm): 515
- Width (mm): 385
- Height (mm): 115
Caster diameter (mm): 75
Elastomer Resin
Finished Product

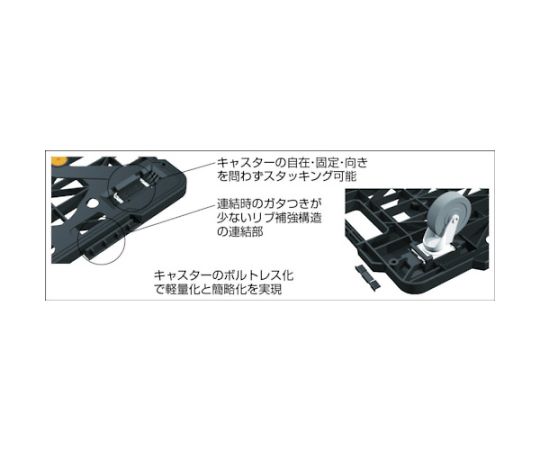

Caster installation method: Boltless structure
4 swivel casters
Flatbed truck

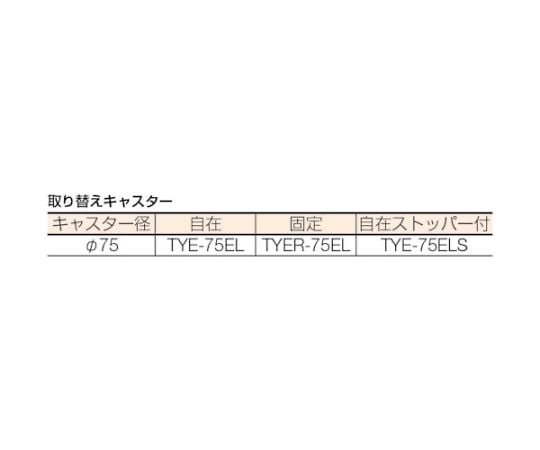

Replacement caster: TYE-75EL (swivel)
Caster diameter (mm): 75
Material/Finish:
Cargo bed: 100% recycled polypropylene (PP)
Caster fittings: Steel (trivalent chrome plated)
Wheel: Polypropylene (PP)
Wheels: Elastomer resin
Country of Origin: Japan
Code number: 362-9511
