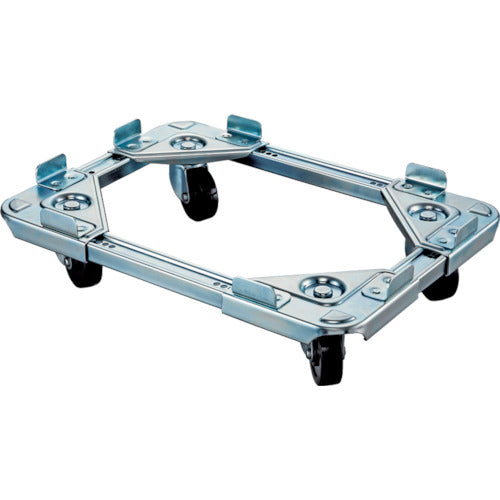

Route container cart Routeboy 202DG type (conductive type) Maximum 510 x 510 202DG-05 1 unit

Catalog number: 202DG-05 Features: *The dimensions can be adjusted in 10 mm increments within the frame. *One φ75 mm conductive caster is included. *The dimensions can be changed by changing the length of the connecting bar. Applications: *Electrical industry. *For storing and transporting containers at factories and production sites for electrical and electronic parts that require conductivity. Specifications: ● Uniform load (kg): 150 ● Frame inner dimensions (mm) length: 410-510 ● Frame inner dimensions (mm) width: 410-510 ● Height (mm): 105 ● Caster diameter (mm): 75 ● Length (mm): 420-520 ● Width (mm): 420-520 ● Estimated assembly time: 30 minutes per person ● Frame inner dimensions (mm) length x width: 410-510 x 410-510 ● Assembled ● 4 swivel casters ● Conductive specifications ● Surface resistance: 10 [to the power of 2] Ω Materials/Finish: ● Caster fittings: Steel ● Wheels: Conductive rubber (1 piece), rubber (3 pieces) ● Corners, connecting bars: Steel
