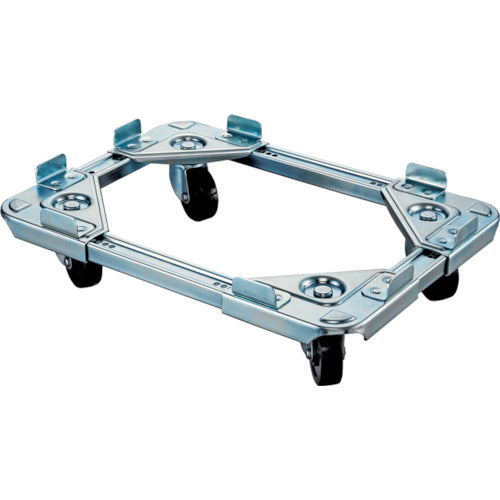

Route container cart Routeboy 202DG type (conductive type) Maximum 510 x 610 202DG-06 1 unit

Catalog number: 202DG-06 Features: *The dimensions can be adjusted in 10 mm increments within the frame. *One φ75 mm conductive caster is included. *The dimensions can be changed by changing the length of the connecting bar. Applications: *Electrical industry. *For storing and transporting containers at factories and production sites for electrical and electronic parts that require conductivity. Specifications: ●Uniform load (kg): 150 ●Frame inner dimensions (mm) length: 510-610 ●Frame inner dimensions (mm) width: 410-510 ●Height (mm): 105 ●Caster diameter (mm): 75 ●Length (mm): 520-620 ●Width (mm): 420-520 ●Frame inner dimensions (mm) length x width: 510-610 x 410-510 ●Estimated assembly time: 30 minutes per person ●Assembly required ●4 swivel casters ●Conductive specifications ●Surface resistance: 10 [to the power of 2] Ω Materials/Finish: ●Caster fittings: Steel ●Wheels: Conductive rubber (1 piece), rubber (3 pieces) ●Corner, connecting bar: Steel
