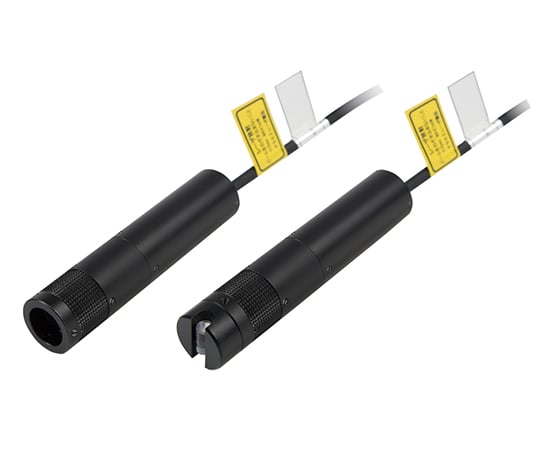

Laser light source (green) point with AC adapter DSGP-515-5-A 1 piece
Laser light source (green) point with AC adapter DSGP-515-5-A 1 piece
Regular price
¥64,350
Regular price
Sale price
¥64,350
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
It is a highly visible 515nm semiconductor laser light source.
Because it is a semiconductor green laser, it can be used over a wide temperature range of -10 to 50°C.
The drive circuit is integrated, making it compact and lightweight. Type: DC jack terminal + AC adapter
Beam shape (at 1m distance): (spot) approx. Φ1.0mm
Optical output: Max. 5.0mW
Wavelength: 515nm
Optical axis accuracy: 3° or less
Current consumption: 150mA or less
Operating temperature: -10 to +50°C
Power supply voltage: DC+12V±10%
Size: Φ16×71.5mm
Weight: Approx. 50g
*We recommend using a holder to dissipate heat.
