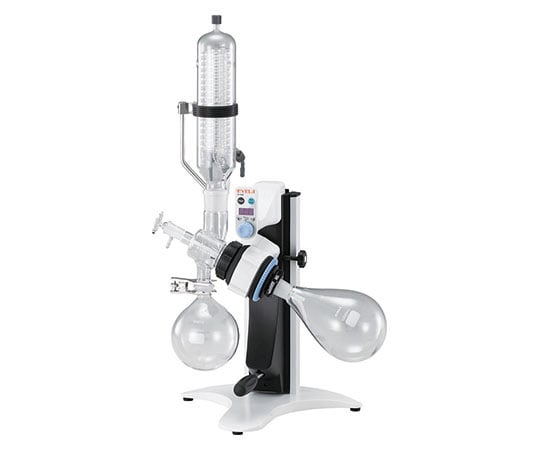

Rotary evaporator N-1300V 1 unit

Supports small to large volume sample flasks The cooling area of ​​the vertical cooler (0.146 m2) provides excellent recovery rates from small flasks to large volumes. The condenser is offset, so there is no risk of condensate from the condenser flowing back into the sample flask through the capillary or rotary joint. Performance Rotation speed range: 10 to 310 rpm Evaporation capacity: Max. 23mL/min (amount of water evaporated) function Rotation setting and display: Encoder type digital setting and digital display Jack function: Manual balance type (180mm, stepless adjustment) composition Rotation motor: DC brushless motor V-shaped glass set: vertical double coil tube (cooling area 0.146㎡), adapter, rotary joint (inner diameter 18 x total length 178mm TS29/38), sample flask (eggplant type) 1L (TS29/38), receiving flask (round bottom) 1L (ball grinding S35/20) Vacuum seal: Teflon® + Teflon®/Viton® double seal (genuine parts: vacuum seal 2 sets product code No. 142610) Connection diameter: Cooling water nozzle/exhaust nozzle outer diameter 10 mm Ambient temperature range: 5 to 35°C External dimensions: 479 x 342 x 823 (1003) mm Weight: 8.9kg Power input/rated power: 1.1A, 110VA, AC100V 50/60Hz *Performance values ​​are measured at room temperature of 20°C and rated power supply voltage. *Evaporation capacity varies depending on conditions such as rotation speed, reduced pressure, bath temperature, cooler temperature, and sample flask. *When using this product, a vacuum pump, cooling water circulation device, etc. are required separately. Code: 266430
