Weidmuller Connector Board Side Socket MPS Series / Common for Lock and Non-Lock 5.00/05/90 2741440000 1 pc

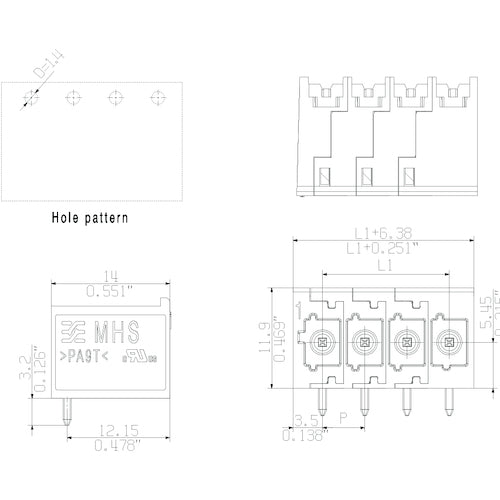

Catalog number: 2741440000 Features: ●This socket is exclusively for the next-generation snap-in clamp connection system, which allows you to connect twisted wires as is. ●Can be used with both locking and non-locking cable side connectors. ●Uses heat-resistant resin. High-performance material compatible with flow/reflow soldering processes. Applications: ●For device boards in various industries, such as various I/O devices, inverters, and controllers. Specifications: ●Number of poles: 5 ●Length (mm): 14 ●Width (mm): 26.38 ●Height (mm): 15.1 ●Insulation coating outer diameter (mm): 4 ●Pitch 5.00mm 5 poles, 90 degrees L1 = 20.0mm ●IEC: 400V/26.8A ●UL: 300V/18.5A ●Pitch (P): 5.00mm ●Soldering process: Flow/reflow (THT/THR) ●Insulation material: PA 9T ●Operating temperature range: -50℃ to 100℃ ●Tube packaging
