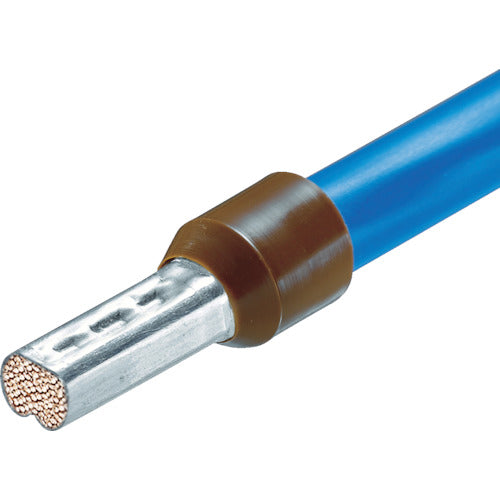

Catalog number: 9006450000 Features: ● Crimps by selecting the optimal position from five crimping grooves according to the wire size. ● Unique spring mechanism allows optimal processing with light force. ● Equipped with a ratchet mechanism that does not release unless the handle is gripped all the way, reducing work variation and crimping errors and providing stable quality. ● Crimping tool for crimp terminals/sleeves (ferrules) up to 25-50 mm2 Applications: ● For crimping crimp terminals/sleeves (ferrules) based on DIN 462228 part 1 and 4. Specifications: ● Total length (mm): 250 ● Crimping range: 25-50 mm2 (AWG4-0) ● Sleeve: For 1 piece ● Crimping range (sleeve for 1 piece)
