Weidmuller crimp terminal H0.25/5 ferrule 9018910000 1000 pcs

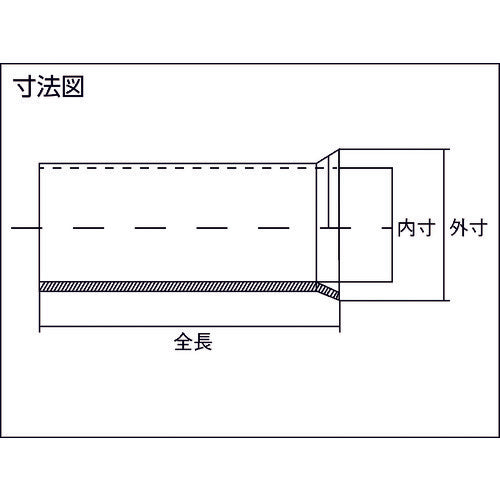

Catalog number: 9018910000 Features: ● The sleeve (ferrule) prevents the wires from coming apart, contributing to improved quality. Applications: ● For spring connections, push-in terminal blocks, and other European-style terminal blocks. Specifications: ● Wire clamping range Stranded wire (mm2): 0.25 ● Wire clamping range AWG: 24 ● External dimension (mm): 1.6 ● Total length (mm): 5.0 ● Internal dimension (mm): 0.8 ● Compatible wire: 0.25mm2/AWG 24 ● Crimp terminal based on DIN 462228 part 1 ● Total length/stripping length: 5mm Material/Finish: ● Copper (tin-plated)
