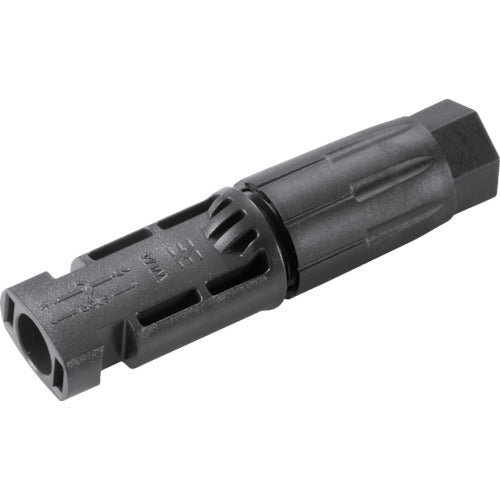

Weidmuller WM4C Socket for Solar Power Generation 1530700000 100 pcs

Catalog number: 1530700000 Features: ●Continuous reliability: IP67 environmentally resistant connector with excellent temperature characteristics. It can provide reliable connections even in harsh environments where solar power generation equipment is installed. ●Easy to install: We also provide tools that are ideal for on-site work, such as cable strippers, crimping tools, and assembly support tools that are convenient for assembling PV connectors. ●Compatibility: WM4 is compatible with many PV connectors on the market, and can be replaced when improving or maintaining existing equipment. Applications: ●For connections between solar panels in solar power plants, and connections to PCS, connection boxes, and extension cables. Specifications: ● Rated current (A): 35 ● Cable outer diameter (mm): 5.5 to 7 ● Rated voltage (V): 1500 VDC (IEC) ● Connection wire range [MM2]: 4 to 6 ● Cable compliance standard: 2 Pfg1169/08.07, EN 50618:2014 ● Continuous operating temperature (℃): -40 to +85 ● Protection class: IP65, IP67, IP2x (when connector is connected/not connected) ● Pollution degree: II ● Certified standard: TUV (DIN EN 50521) Note: ● For connection compatibility, please consult our technical consultation desk.
