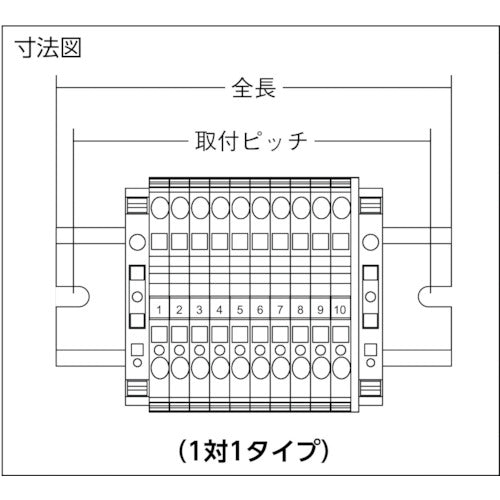

Catalog number: 7800003917 Features: ● European-style spring-type terminal blocks, which are excellent for reducing wiring, are provided pre-assembled on DIN rails. ● Markers are already attached, reducing labor hours and preventing incorrect wiring. ● Open the wire connection part with a flat-head screwdriver, insert the stripped wire, and pull out the screwdriver to complete the connection. Applications: ● For relaying wires and branching wiring. Specifications: ● Number of poles: 20 ● Length (mm): 140 ● Width (mm): 59.5 ● Height (mm): 46.5 ● Type: Spring type ● Mounting pitch (mm): 130 ● Wire size: 0.5 to 4.0 mm2 / AWG NO. 30 to 12 ● Rated voltage: IEC 800V / UL 600V ● Rated current: IEC 24A / UL 25A ● Compliance standards: CE, UL, CSA, EAC ● Stripping length: 10 mm ● Operating temperature range: -50 to 120 °C ● Compatible tools: Flathead screwdriver, straight type (blade thickness x blade width) 0.6 x 3.5 mm ● Compatible screwdriver: SDS 0.6 x 3.5 x 100 (9008330000) ● Rail width: 35 mm ● With marker: 1 from the left Material / Finish: ● Rail part: Steel ● Terminal block part: PA (Polyamide)
