Weidmuller Insulated Covered Crimp Terminal H2.5/25D BL Ferrule 9019180000 500 pcs

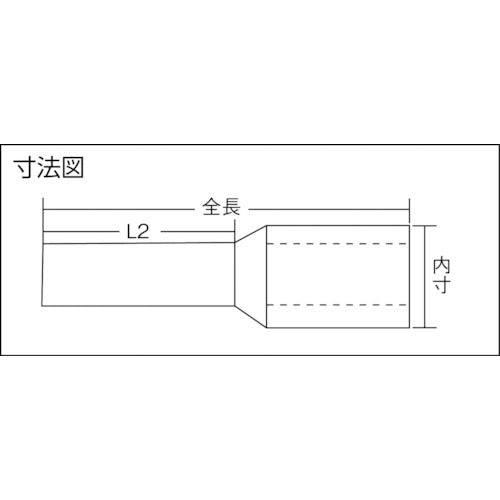

Catalog number: 9019180000 Features: ● Sleeves (ferrules) prevent wires from coming apart, contributing to improved quality. ● Available in a wide variety of 12 colors to color-code wire sizes. Applications: ● For spring connections, push-in terminal blocks, and other European-style terminal blocks. Specifications: ● Wire compatibility range Stranded wire [MM2]: 2.5 ● Wire clamping range Stranded wire (MM2): 2.5 ● Wire clamping range AWG: 14 ● Wire compatibility range AWG: 14 ● Color: Blue ● Total length (mm): 25.0 ● Inner dimension (mm): 4.2 ● L2 (mm): 18.0 ● Crimp terminal based on DIN 462228 part 4 ● Conductor length (mm): 18 ● Stripping length (mm): 20 ● Insulation width (mm): 4.2 ● Insulation color: Blue Material/Finish: ● Copper (tin-plated) ● Polypropylene (PP)
