Weidmuller Crimp Terminal with Insulation Cover H4.0/18 GR SV Ferrule 9026010000 50 pcs

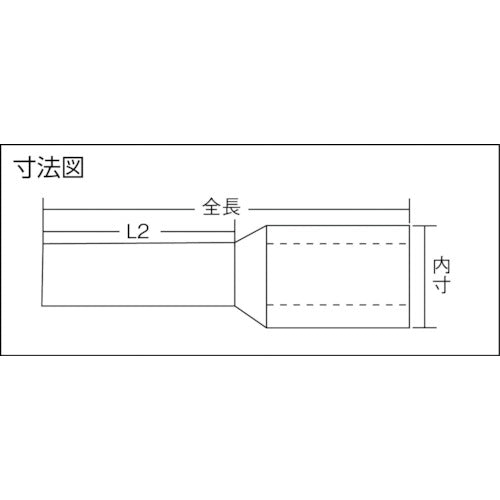

Catalog number: 9026010000 Features: ● Sleeves (ferrules) prevent wires from coming apart, contributing to improved quality. ● Available in a wide variety of colors to color-code wire sizes. ● 50 pieces per bag Applications: ● For spring connections, push-in terminal blocks, and other European-style terminal blocks. Specifications: ● Wire compatibility range Stranded wire [MM2]: 4 ● Wire clamping range Stranded wire (MM2): 4 ● Wire clamping range AWG: 12 ● Wire compatibility range AWG: 12 ● Color: Gray ● Total length (mm): 18.0 ● Inner dimensions (mm): 4.8 ● L2 (mm): 10.0 ● Crimp terminal based on DIN 462228 part 4 ● Conductor length (mm): 10 ● Strip length (mm): 12 ● Insulation width (mm): 4.8 ● Insulation color: Gray Material/Finish: ● Copper (tin-plated) ● Polypropylene (PP)
