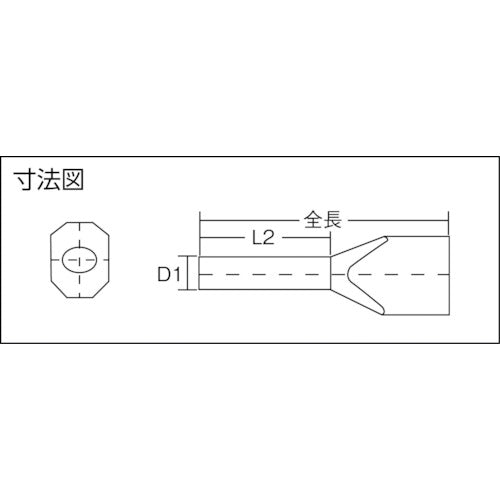

Catalog number: 9004910000 Features: * The sleeve (ferrule) prevents the wires from coming apart, contributing to improved quality. * A wide variety of colors are available so that wires can be color-coded according to size. * For connecting two wires. Applications: * For spring connections, push-in terminal blocks, and other European-style terminal blocks. Specifications: ●Wire compatibility range Stranded wire [MM2]: 1 ●Wire clamping range Stranded wire (MM2): 1 ●Wire clamping range AWG: 17 ●Wire compatibility range AWG: 17 ●Color: Yellow ●Total length (mm): 19.0 ●L2 (mm): 12.0 ●D1 (mm): 2.0 ●Compatible wire: 1mm2/AWG 17 ●Crimp terminal based on DIN 462228 part 1 ●Conductor length (mm): 12 ●Stripping length (mm): 2 ●Insulation width (mm): 0.15 ●Insulation color: Yellow Material/Finish: ●Copper (tin plated) ●Polypropylene (PP)
