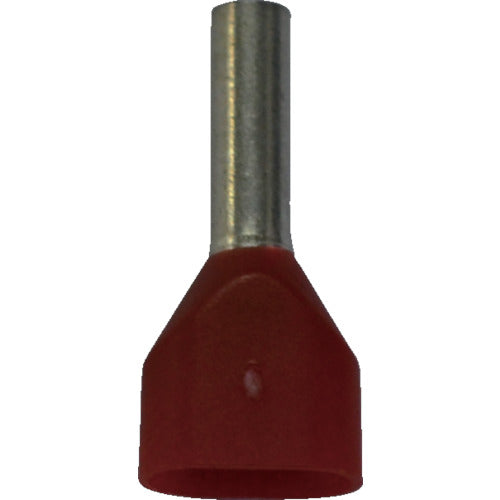

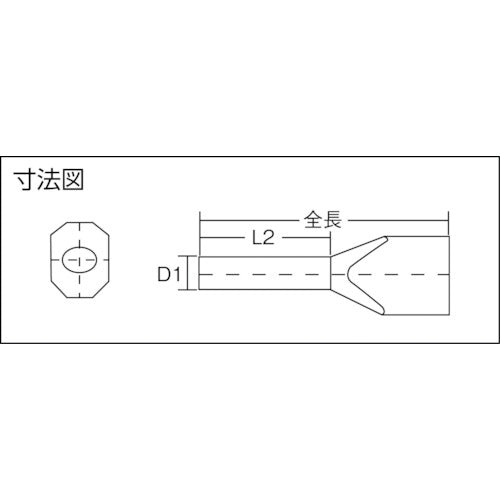

Catalog number: 9004410000 Features: * Sleeves (ferrules) prevent wires from coming apart, contributing to improved quality. * Available in a wide range of colors to allow color-coding by wire size. * For connecting two wires. Applications: * For spring connections, push-in terminal blocks, and other European-style terminal blocks. Specifications: ●Wire compatibility range Stranded wire [MM2]: 1.5 ●Wire clamping range Stranded wire (MM2): 1.5 ●Wire clamping range AWG: 16 ●Wire compatibility range AWG: 16 ●Color: Red ●Total length (mm): 16.0 ●L2 (mm): 8.0 ●D1 (mm): 2.2 ●Compatible wire: 1.5mm2/AWG 16 ●Crimp terminal based on DIN 462228 part 1 ●Total length: 16mm ●Conductor length: 8mm ●Stripping length: 2.2mm ●Insulation width: 0.15mm ●Insulation color: Red Material/Finish: ●Copper (tin plated) ●Polypropylene (PP)
