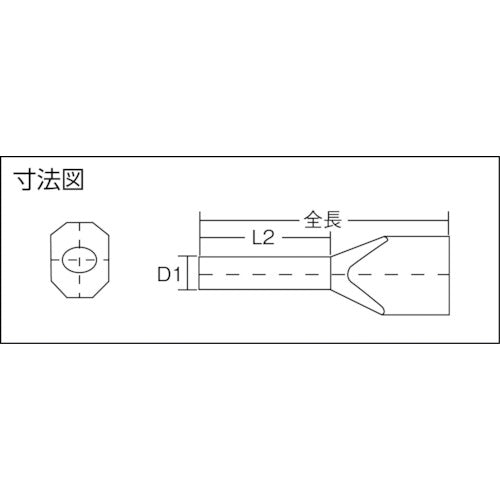

Catalog number: 9004920000 Features: * Sleeves (ferrules) prevent wires from coming apart, contributing to improved quality. * Available in a wide range of colors to allow color-coding by wire size. * For connecting two wires. Applications: * For spring connections, push-in terminal blocks, and other European-style terminal blocks. Specifications: ●Wire compatibility range Stranded wire [MM2]: 1.5 ●Wire clamping range Stranded wire (MM2): 1.5 ●Wire clamping range AWG: 16 ●Wire compatibility range AWG: 16 ●Color: Red ●Total length (mm): 20.0 ●L2 (mm): 12.0 ●D1 (mm): 2.2 ●Compatible wire: 2.5mm2/AWG 14 ●Crimp terminal based on DIN 462228 part 1 ●Conductor length (mm): 10 ●Stripping length (mm): 2.8 ●Insulation width (mm): 0.15 ●Insulation color: Blue Material/Finish: ●Copper (tin plated) ●Polypropylene (PP)
