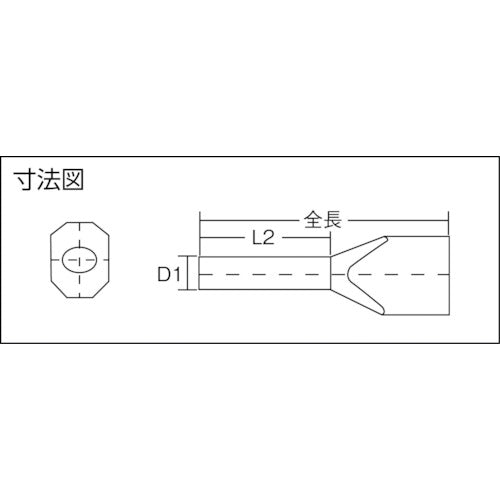

Catalog number: 9037330000 Features: * The sleeve (ferrule) prevents the wires from coming apart, contributing to improved quality. * A wide variety of colors are available so that wires can be color-coded according to size. * For connecting two wires. Applications: * For spring connections, push-in terminal blocks, and other European-style terminal blocks. Specifications: ●Wire compatibility range Stranded wire [MM2]: 6 ●Wire clamping range Stranded wire (MM2): 6 ●Wire clamping range AWG: 10 ●Wire compatibility range AWG: 10 ●Color: Black ●Total length (mm): 29.0 ●L2 (mm): 18.0 ●D1 (mm): 4.5 ●Compatible wire: 6mm2/AWG 10 ●Crimp terminal based on DIN 462228 part 4 ●Conductor length (mm): 18 ●Stripping length (mm): 4.5 ●Insulation width (mm): 0.2 ●Insulation color: Black Material/Finish: ●Copper (tin plated) ●Polypropylene (PP)
