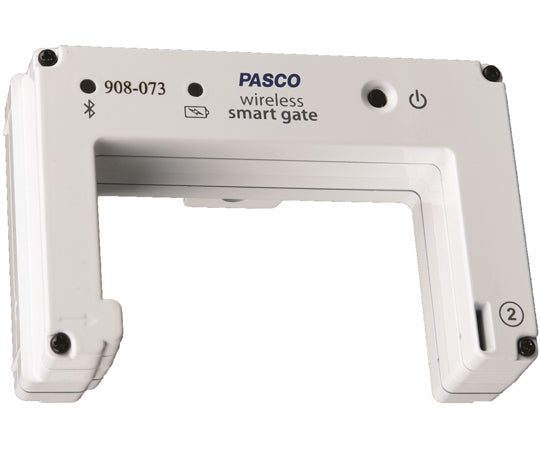

Wireless Smart Gate PS-3225 101-397 1 unit

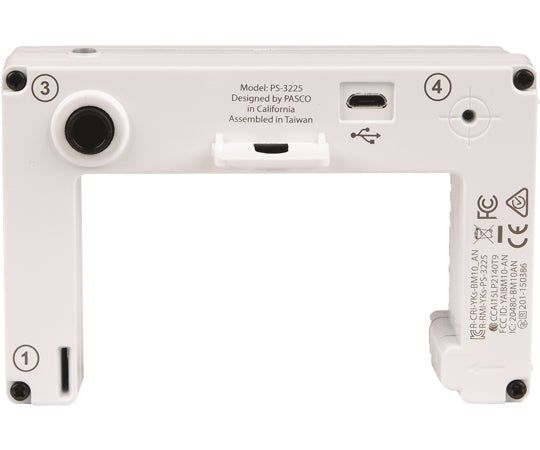

The time it takes to pass through the gate is used to measure the pendulum's period and speed. When using the Capstone software, any laser can be irradiated into the laser detection port to analyze the time it takes for a large object that cannot pass through the gate to block the laser light. By connecting a photogate to the auxiliary port, it can be used in sync with the wireless smart gate. Supports various experiments related to "motion" such as pendulum experiments, kinetic energy experiments, and free fall experiments Since there are two sensor ports (port 1 and port 2) spaced 15 mm apart, it is also possible to determine the speed when passing through the gate. Compatible with both Bluetooth and USB cables Display measurement data in an easy-to-understand manner Using dedicated software (SPARKvue, Capstone), you can display the data in graphs and compare it. Sensor Port 1: Photogate (infrared transmission and detection) Port 2: Photogate (infrared transmission and detection) Port 3: Auxiliary port (connects related products) Port 4: Laser detection port *Capstone only Size Body: W100.5×D80×H69 mm Inside gate: W72×D40 mm Distance between port 1 and port 2: 15 mm Infrared wavelength: 940 nm Battery: Rechargeable via USB port Compatible software: SPARKvue and Capstone Use of data log: No Connectivity: Bluetooth 4.2 or USB 2.0 Accessories: Mounting rod (1/4 inch screw). USB cable Note: The dedicated software "SPARKvue" or "Capstone" is required. Also, if you want to connect to a PC via Bluetooth, a dedicated adapter is required. *This product is for educational and school use. Product code: 101-397
