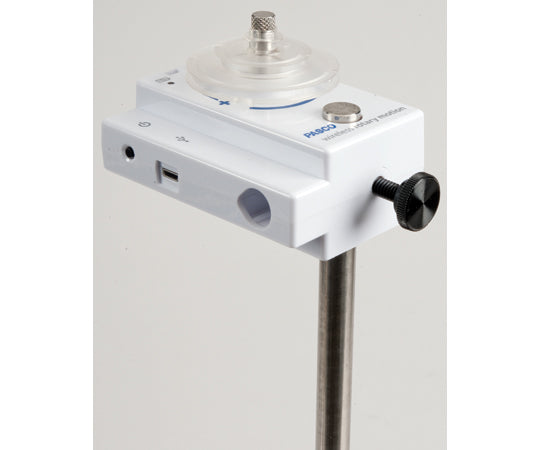

Wireless Rotational Motion Sensor PS-3220 101-369 1 unit

It comes with a 3-stage pulley and can easily measure angles, angular velocity, angular acceleration, and distance in rotational motion. Supports a variety of experiments related to "rotation and motion" Compatible with both Bluetooth and USB cables Data logging function allows measurements to be taken away from the experiment site The measurement data is stored in the sensor and can be viewed on a PC or tablet after the measurement. Display measurement data in an easy-to-understand manner Using dedicated software (SPARKvue, Capstone), you can display the change in angle (distance) over time, and compare graphs and data by combining with other sensors such as wireless 3-axis magnetic sensors. Three-speed pulley: φ10/29/48mm Angle resolution: ±0.18° Distance resolution φ10mm pulley: 0.0157mm φ29mm pulley: 0.0456mm φ48mm pulley: 0.0754mm φ48mm pulley (with O-ring): 0.0864mm Maximum rotation speed: 30 rpm Encoder: 2000 divisions/revolution Battery: Rechargeable via USB port Compatible software: SPARKvue and Capstone Use of data log: Yes Connectivity: Bluetooth 4.2 or USB 2.0 Size: Approx. W66 x D92 x H41mm Weight: Approx. 160g Accessories: O-ring, USB cable Note: The dedicated software "SPARKvue" or "Capstone" is required. Also, if you want to connect to a PC via Bluetooth, a dedicated adapter is required. *This product is for educational and school use. Product code: 101-369
