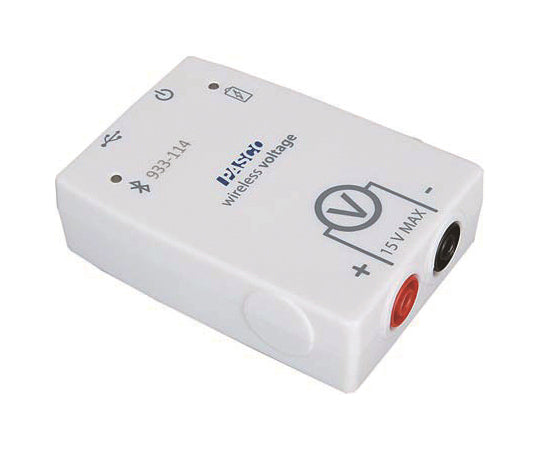

Wireless voltage sensor PS-3211 101-355 1 unit

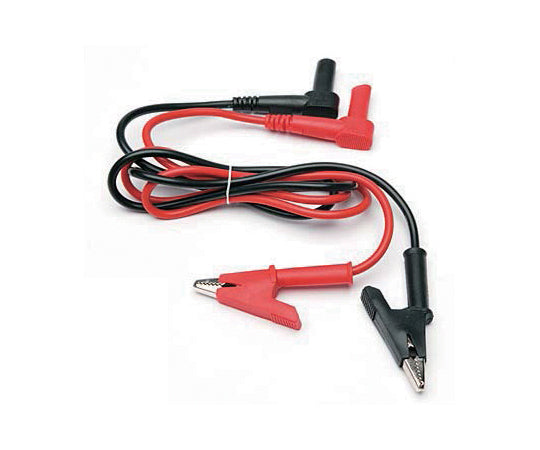

Voltage can be measured easily. Simple design With a wireless voltage sensor and a PC, tablet, or smartphone, you can measure voltage at any time. You can connect via Bluetooth or USB. Lead wires are included so you can start experimenting right away. Measurement data can be displayed in an easy-to-understand manner Using dedicated software (SPARKvue, Capstone), you can graph the change in voltage over time and compare the measured data. Use the data logging feature to take measurements away from the experiment. Measurement data is stored in the sensor and can be viewed on a PC or tablet after measurement. Measurement range: ±5V/±15V (2 ranges), automatic switching Resolution: 2mV (±5V range) 7mV (±15V range) Input resistance: 1MΩ or more Maximum sampling rate: 1000Hz (normal measurement) 100kHz (scope mode, FFT) Battery: Rechargeable via USB port Compatible software: SPARKvue and Capstone Data logging available: Yes Data logging time: Approx. 3 days* Connectivity: Bluetooth 4.2 or USB 2.0 (see [Compatible Devices] on page 108 Air Link) Size and weight: Approx. W57 x D78 x H24mm, approx. 60g Accessories: Lead wire (alligator clip), USB cable *Depends on sampling rate, measurement environment, and battery condition. Note: The dedicated software "SPARKvue" or "Capstone" is required. Also, if you want to connect to a PC via Bluetooth, a dedicated adapter is required. *This product is for educational and school use. Product code: 101-355
