Wako Pallet Air Caster (with swivel stopper) 125mm rubber caster AMG-125-NRBDS 1 piece

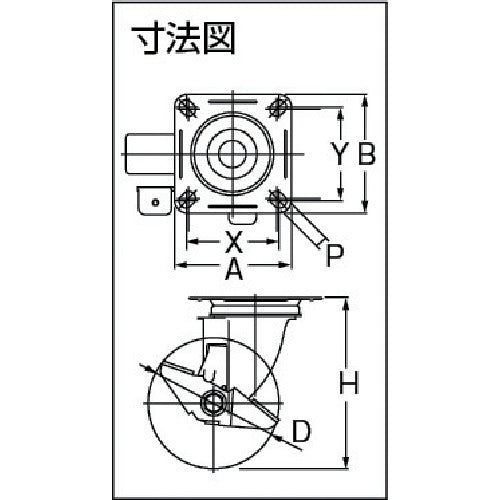

Catalog number: AMG-125-NRBDS Features: * Light weight and smooth movement during transportation improves workability. * Elasticity reduces vibration and protects the load on the platform. * Durable, long life, and reduces costs. * Light movement reduces fatigue. * Quiet and environmentally friendly product. Specifications: ● Wheel diameter D (mm): 125 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 120 ● Allowable load (kgf): 123 ● Wheel width (mm): 30 ● Mounting height H (mm): 168 ● Mounting seat A (mm): 102 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 75-80 ● Mounting pitch Y (mm): 75-80 ● Mounting hole diameter P (mm): 11.0 ● Allowable load (N): 1200 ● Plate type ● Free-wheeling (with stopper) Material/Finish: ● Metal fittings: Extra-special high-strength steel plate ● Metal fittings surface treatment: Trivalent chromate finish ● Wheels: Nylon wheel, rubber
