Wako Pallet Air Caster (with swivel stopper) 125mm Nylon caster AHG-125-NBDS 1 piece
Wako Pallet Air Caster (with swivel stopper) 125mm Nylon caster AHG-125-NBDS 1 piece
Regular price
¥3,815
Regular price
Sale price
¥3,815
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

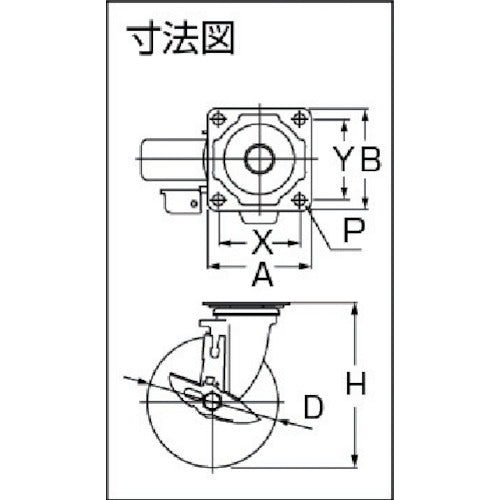

Catalog number: AHG-125-NBDS Features: ●Lightweight movement reduces fatigue. ●Lightweight weight improves workability with smooth movement during transportation. ●Elasticity reduces vibration and protects the load on the platform. ●Durable, long life, and reduces costs. Specifications: ●Wheel diameter D (mm): 130 ●Type: Free-standing (with stopper) ●Allowable load (daN): 160 ●Allowable load (kgf): 164 ●Wheel width (mm): 38 ●Mounting height H (mm): 170 ●Mounting seat A (mm): 102 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 80 ●Mounting pitch Y (mm): 80 ●Mounting hole diameter P (mm): 11 ●Allowable load (N): 1600 ●Plate type ●Radial bearing included ●Free-standing (with stopper) Material/Finish: ●Metal fittings: Extra-special high-strength steel plate ●Metal fittings surface treatment: Trivalent chromate finish ●Wheels: Nylon
