(株)ワコーパレット
Wako Pallet Air Caster (with swivel stopper) 150mm White rubber wheels AHG-150-NRBDS-W 1 piece
Wako Pallet Air Caster (with swivel stopper) 150mm White rubber wheels AHG-150-NRBDS-W 1 piece
Regular price
¥4,752
Regular price
Sale price
¥4,752
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

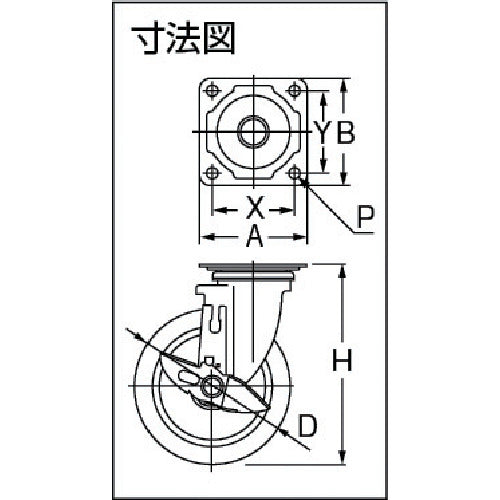

Catalog number: AHG-150-NRBDS-W Features: ●White rubber wheels prevent floor stains while still providing the ease of use of rubber wheels. ●Ultra-special steel frame provides light weight and high durability. ●Ideal for use in clean rooms, etc. Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 180 ● Allowable load (kgf): 184 ● Wheel width (mm): 38 ● Mounting height H (mm): 190 ● Mounting seat A (mm): 102 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 80 ● Mounting pitch Y (mm): 80 ● Mounting hole diameter P (mm): 11.0 ● Allowable load (N): 1800 ● Plate type ● Radial bearing included ● Free-wheeling (with stopper) Material/Finish: ● Metal fittings: Extra-special high-strength steel plate ● Metal fittings surface treatment: Trivalent chromium plating finish ● Wheels: White rubber ● Wheels: Nylon
View full details
