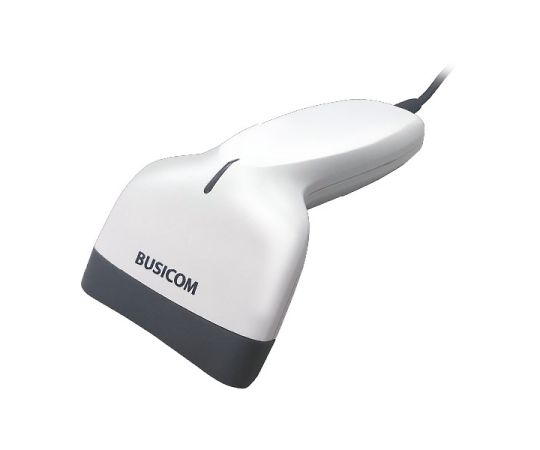

1D barcode reader BC-BR1000U USB type White BC-BR1000U-W 1 piece
1D barcode reader BC-BR1000U USB type White BC-BR1000U-W 1 piece
Regular price
¥6,732
Regular price
Sale price
¥6,732
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
A power-saving barcode reader equipped with a CMOS sensor
High-precision, smooth reading with a scanning speed of 200 scans/sec and a minimum resolution of 0.07 mm
The cable is made of high-quality TPE (thermoplastic elastomer) material that is strong, light and flexible, and has passed a 500,000-bending test.
GS1 DataBar compatible
Can also be read on the LCD screen
The body is ruggedly designed to meet IP30 protection standards and withstand drops from up to 1.5m.
It is also ideal for commercial use.
The rubber part absorbs shock when placed down.
1 year warranty Color: White
Warranty period: 1 year
External dimensions: Width 80 x Depth 48 x Height 161.5 mm
Interface: USB2.0 (USB keyboard / USB-COM *Windows only)
Cable: Straight cable (flexibility: 500,000 times), standard cable (1.7m) / short cable (1.1m)
Reading method: 2,500pixel CMOS sensor
CPU: 32bit CPU processor
Scan code *2D codes are not supported: [1D barcodes] JAN, EAN, UPC-A/E, ISSN, ISBN, NW-7 (Codabar), Interleaved 2 of 5 (ITF), ITF14, Industrial 2 of 5, Code39, Code32, Code93, Code11, Code128, GS1-128 (EAN-128), GS1 DataBar (RSS)
Maximum reading width: Touch reading/70mm, Lift reading/90mm (depending on conditions)
Reading distance: 0 to 50 mm (depending on conditions)
Minimum resolution: 0.07mm
Scan speed: 200 scans/sec
Light source: Red LED (625 nm)
Read confirmation: Blue LED, buzzer
Power supply: 5V DC ±5% supplied from the connection
Current consumption: 70mA during operation / 43mA during standby
Drop resistance: Normal operation after being dropped from 1.5m
Protection rating: IP30
Operating temperature/humidity: Operating temperature/0℃ to 40℃, Storage temperature/-20℃ to 60℃ (no condensation or freezing)
Supported OS: Windows 8 / 8.1 / 10 (other OS that supports USB HID)
*This product cannot be canceled after ordering.
