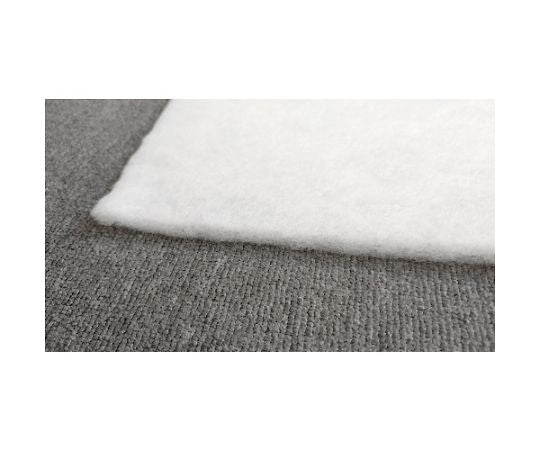

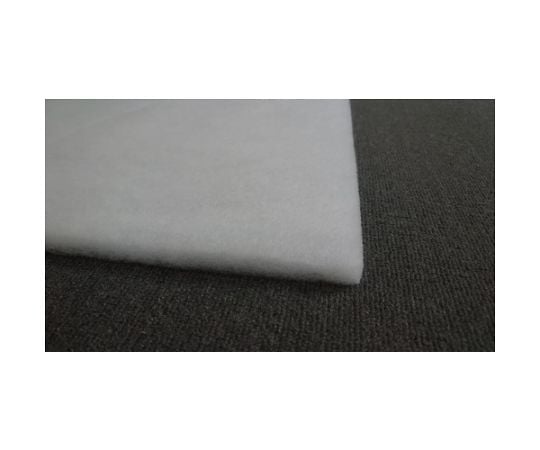

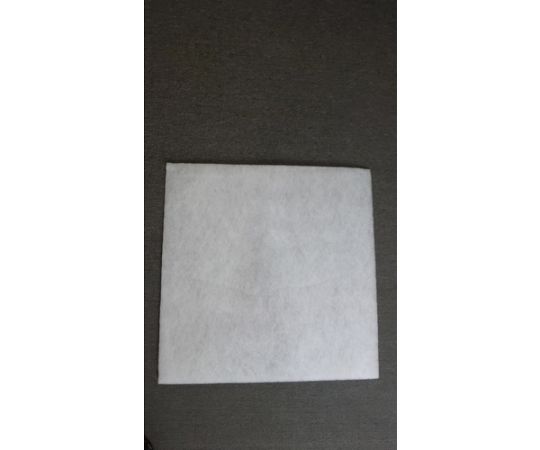

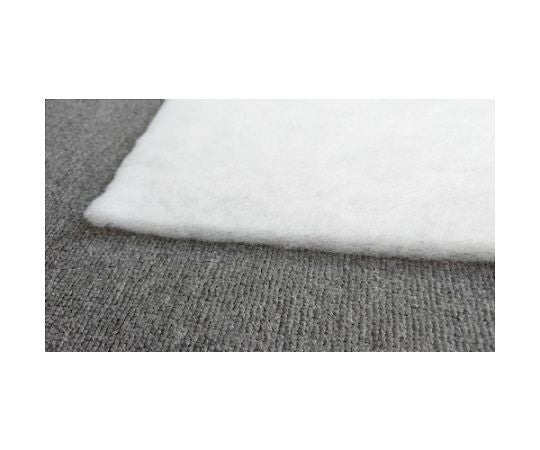

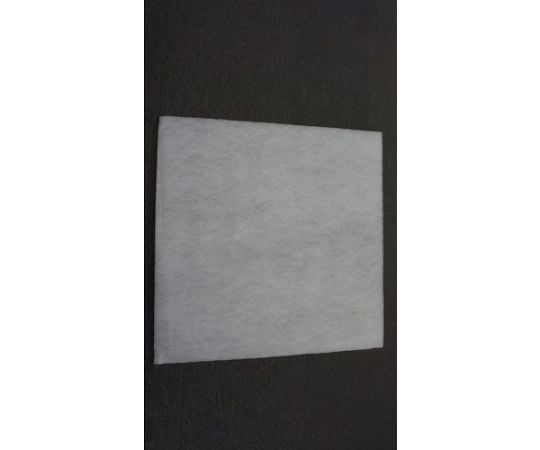

This is an industrial air filter, a primary air intake pre-filter.
For outdoor air treatment in general air conditioning and pre-treatment of medium-performance filters.
Air conditioning for buildings such as offices, hotels, and department stores.
Outdoor air treatment for subways and underground shopping malls.
Outdoor air treatment for factory air conditioning. Collection efficiency (%): 90
Thickness(mm):10
Initial pressure loss (Pa): 100
Filtration air velocity (m/s): 2.57
Heat resistance temperature (℃): 80 degrees
Rated air volume (m3/min): 56.6
Width(mm):605
Pressure loss (Pa) final: 200
Size(mm): 605×605×15
Length(m):605
Body dimensions (mm): 605 x 605
Rated air volume: 56.6m3/min
Pressure loss (initial): 100Pa
Pressure loss (final): 200Pa
Heat resistance: 80 degrees
Material/Finish: Polyester
Note: The thickness is about 10mm due to the fiber. The tolerance is 5-15mm.
Country of Origin: China
Code number: 207-4839
