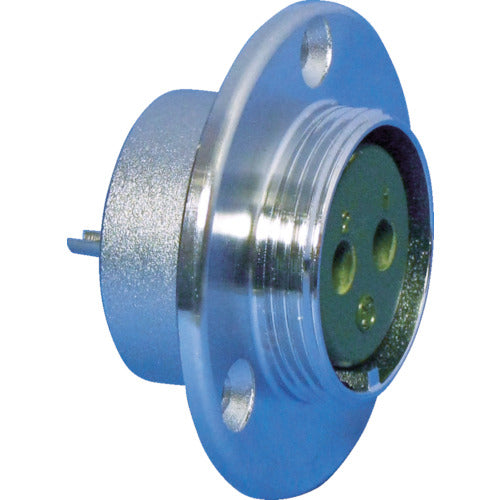

Shichisei Metal Connector NCS-25 Series 2-Pole RF NCS-252-RF 1 pc

Catalog number: NCS-252-RF Features: ●Basic metal connector that can be used for various circuits. ●Robust and simple structure for mechanical and electrical stability. ●Products with 2 to 5 contacts are PSE marked. (Receptacles are not included) ●Wiring connection method is soldering. Applications: ●Screw-lock connector. Specifications: ●Wire conductor cross-sectional area (mm2): 2 ●Connector shape: RF (female) ●Number of contacts: 2 ●Limiting operating voltage (V): 400 ●Withstand voltage (V): 2000 ●Rating: 10A250V ●PM (male plug) and RF (female receptacle) mate ●Limiting operating voltage: 400V Materials/Finish: ●Shell: Zinc alloy, chrome plated ●Insulator: Synthetic resin ●Contact: Copper alloy, nickel plated Note: ●Receptacles are not PSE marked because they are not subject to the type classification of the Electrical Appliance and Material Safety Act.
