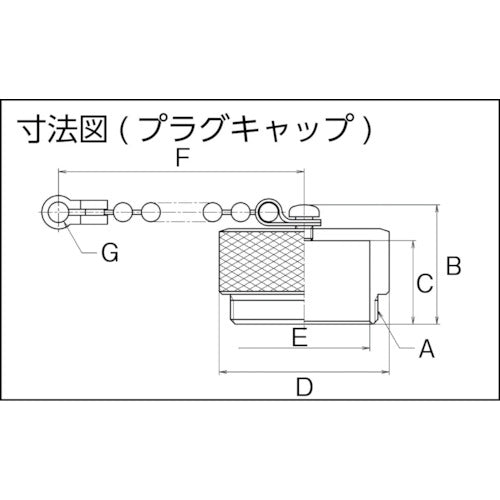

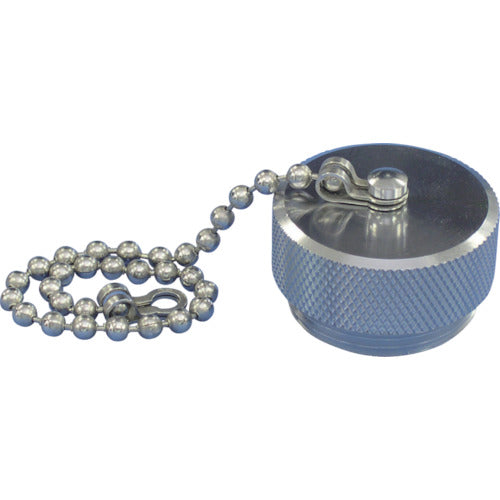

Catalog number: NCS-30-PCA Features: ● Cap for use with P (plugs) to protect the contacts. Applications: ● Screw-lock connector cap. Specifications: ● Applicable shell size: 30 ● Standard dimension F: 150 ● Standard dimension E: φ26 ● Standard dimension G: 3.45 hole ● Standard dimension C: 17 ● Standard dimension B: 23 ● Standard dimension A: M29.2 x 1 ● Standard dimension D: φ34 ● Cap for use with P (plugs) to protect the contacts. Materials/Finish: ● Body: Zinc alloy ● Chain: Stainless steel ● Screws: Brass
