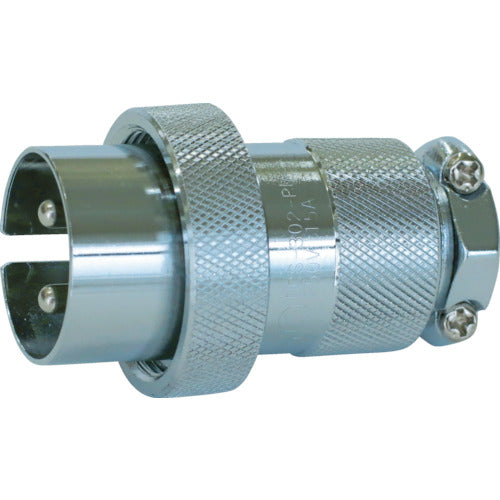

Shichisei Metal Connector NCS-30 Series 6-Pole PM NCS-306-PM 1 pc

Catalog number: NCS-306-PM Features: ●Basic metal connector that can be used for various circuits. ●Robust and simple structure for mechanical and electrical stability. ●Products with 2 to 5 contacts are PSE marked. (Receptacles are not included) ●Wire connection method is soldering. Applications: ●Screw-lock connector. Specifications: ●Wire conductor cross-sectional area (mm2): 2 ●Connector shape: PM (male) ●Number of contacts: 6 ●Limiting operating voltage (V): 400 ●Withstand voltage (V): 1800 ●Rating: 10A250V ●PM (male plug) and RF (female receptacle) mate Materials/Finish: ●Shell: Zinc alloy, chrome plated ●Insulator: Synthetic resin ●Contacts: Copper alloy, nickel plated
