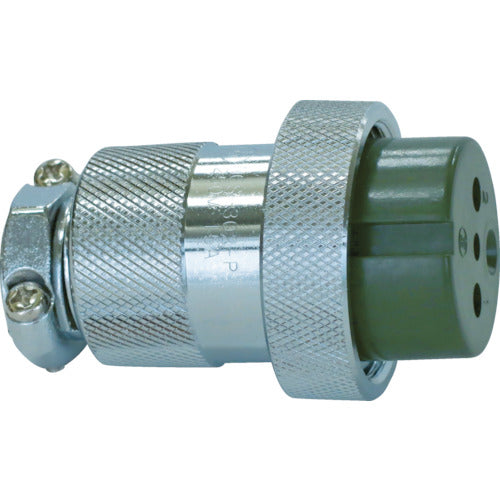

Shichisei Metal Connector NCS-30 Series 6-P P NCS-306-P 1 pc

Catalog number: NCS-306-P Features: ●Basic metal connector that can be used for various circuits. ●Robust and simple structure for mechanical and electrical stability. ●Products with 2 to 5 contacts are PSE marked. (Receptacles are not included) ●Wire connection method is soldering. Applications: ●Screw-lock connector. Specifications: ●Wire conductor cross-sectional area (mm2): 2 ●Connector shape: P (female) ●Number of contacts: 6 ●Limiting operating voltage (V): 400 ●Withstand voltage (V): 1800 ●Rating: 15A250V ●P (female plug) and R (male receptacle) mate Materials/Finish: ●Shell: zinc alloy, chrome plated ●Insulator: synthetic resin ●Contacts: copper alloy, nickel plated
