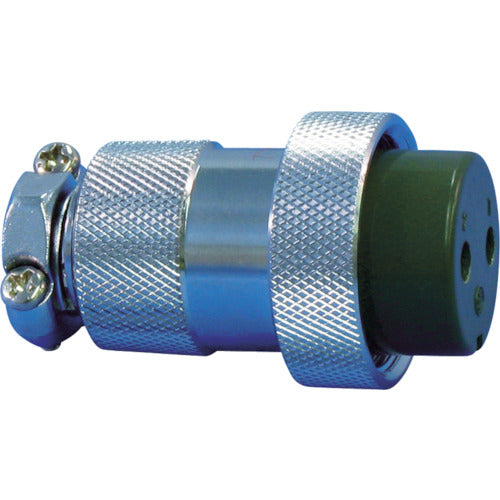

Shichisei Metal Connector NCS-40 Series 12-Pole P NCS-4012-P 1 pc

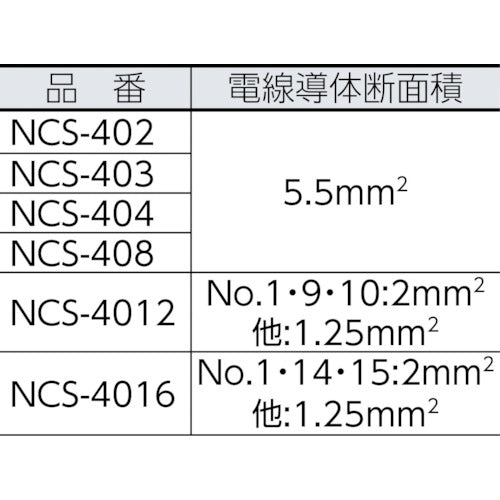

Catalog number: NCS-4012-P Features: ●Basic metal connector that can be used for various circuits. ●Robust and simple structure provides mechanical and electrical stability. ●Wiring connection method is soldering. Applications: ●Screw-lock connector. Specifications: ●Wire conductor cross-sectional area (mm2): No. 1, 9, 10-2, etc. - 1.25 ●Connector shape: P (female) ●Number of contacts: 12 ●Limiting operating voltage (V): 300 ●Withstand voltage (V): 1800 ●Rating: 3-10A 9-5A 250V ●P (female plug) and R (male receptacle) mate Materials/Finish: ●Shell: zinc alloy, chrome plated ●Insulator: synthetic resin ●Contacts: copper alloy, silver plated
