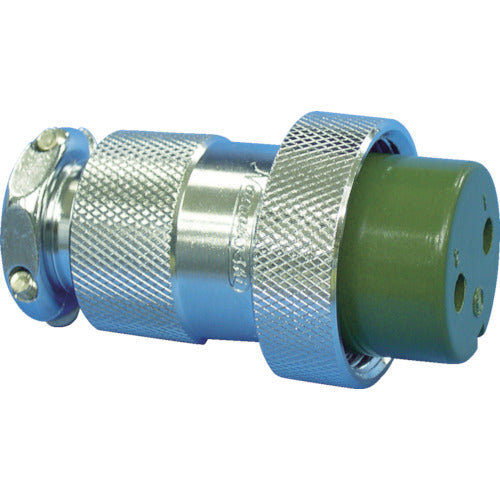

Shichisei Metal Connector NCS-40 Series 2-P P NCS-402-P 1 pc

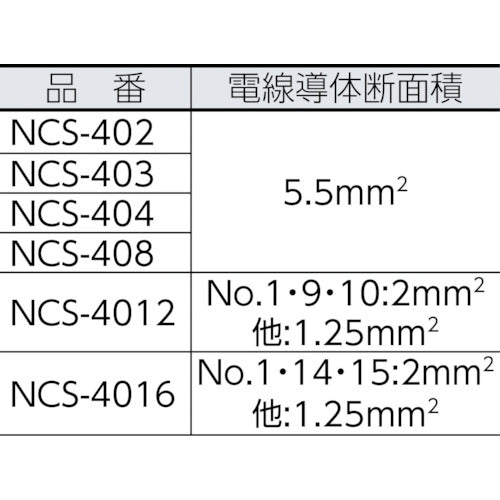

Catalog number: NCS-402-P Features: ●Basic metal connector that can be used for various circuits. ●P (female plug) is PSE notation. (Excluding 8P, 12P, and 16P) ●Wiring connection method is soldering. ●Robust and simple structure provides mechanical and electrical stability. Applications: ●Screw-lock connector. Specifications: ●Wire conductor cross-sectional area (mm2): 5.5 ●Connector shape: P (female) ●Number of contacts: 2 ●Limiting operating voltage (V): 500 ●Withstand voltage (V): 2500 ●Rating: 30A250V ●P (female plug) and R (male receptacle) mate Materials/Finish: ●Shell: Zinc alloy, chrome-plated ●Insulator: Synthetic resin ●Contact: Copper alloy, silver-plated
