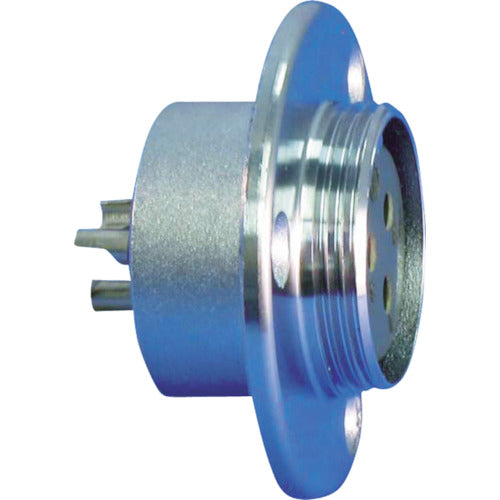

Shichisei Metal Connector NCS-44 Series 8-Pole RF NCS-448-RF 1 pc

Catalog number: NCS-448-RF Features: ●Basic metal connector that can be used for a variety of circuits. ●Robust and simple structure provides mechanical and electrical stability. ●Wiring connection method is soldering. Applications: ●Screw-lock connector Specifications: ●Wire conductor cross-sectional area (mm2): 5.5 ●Connector shape: RF (female) ●Number of contacts: 8 ●Limiting operating voltage (V): 400 ●Withstand voltage (V): 2000 ●Rating: 20A250V ●PM (male plug) and RF (female receptacle) mate Materials/Finish: ●Shell: zinc alloy, chrome plated ●Insulator: synthetic resin ●Contacts: copper alloy, silver plated
