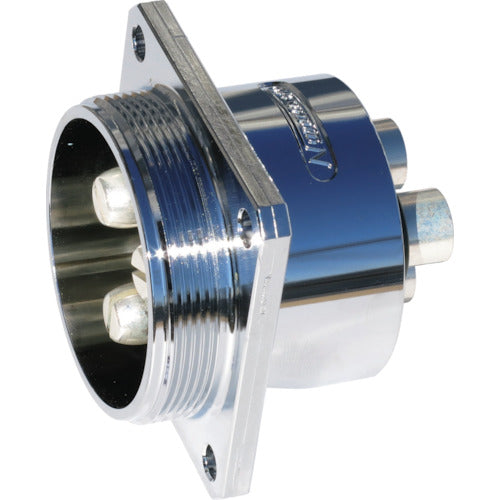

Shichisei Metal Connector NCS-50 Series 2-Pole R NCS-502-R 1 Piece

Catalog number: NCS-502-R Features: ●Basic metal connector that can be used for various circuits. ●The wiring connection method is soldering. ●Robust and simple structure provides mechanical and electrical stability. Applications: ●Screw-lock connector. Specifications: ●Wire conductor cross-sectional area (mm2): 30 ●Connector shape: R (male) ●Number of contacts: 2 ●Limiting operating voltage (V): 600 ●Withstand voltage (V): 3000 ●Rating: 80A500V ●P (female plug) and R (male receptacle) mate ●Square flange type Material/Finish: ●Shell: zinc alloy, chrome plated ●Insulator: synthetic resin ●Contact: copper alloy, silver plated
