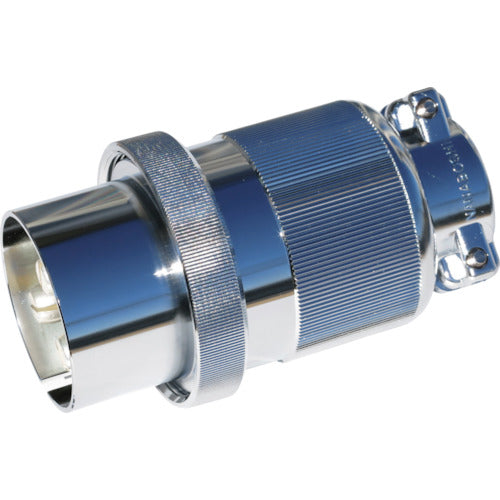

Shichisei Metal Connector NCS-54 Series 4-Pole PM NCS-544-PM 1 Piece

Catalog number: NCS-544-PM Features: ●Basic metal connector that can be used for various circuits. ●NCS-544-PM is PSE certified. ●Wiring connection method is soldering. ●Robust and simple structure provides mechanical and electrical stability. Applications: ●Screw-lock connector. Specifications: ●Wire conductor cross-sectional area (mm2): 14 ●Connector shape: PM (male) ●Number of contacts: 4 ●Limiting operating voltage (V): 500 ●Withstand voltage (V): 2500 ●Rating: 50A250V ●PM (male plug) and RF (female receptacle) mate ●PSE certified Material/Finish: ●Shell: Zinc alloy, chrome plated ●Insulator: Synthetic resin ●Contacts: Copper alloy, silver plated
