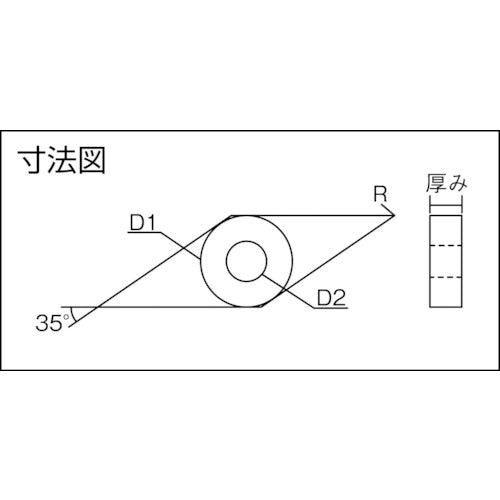

Catalog number: 09L3504-BL2 Features: ●High toughness compared to other material tips, ideal for intermittent cutting and machining where the workpiece rotation speed does not increase. Specifications: ●Breaker: L breaker 2 ●Shape: Diamond 35° ●Thickness (mm): 4.76 ●D1 (mm): 9.525 ●D2 (mm): 3.81 ●R: 0.2 ●Carbide tip model number: VN□□1604〜 ●Compatible models: General-purpose lathes, NC lathes Material/Finish: ●High-speed steel (SKH57) Note: ●The holder conforms to the standard specifications for carbide tips.
