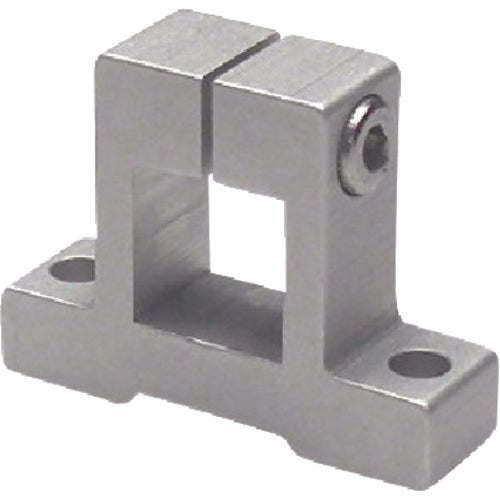

Miyoshi Machinery Pijon SQ12-600 SQ12-600 1 piece

Catalog number: SQ12-600 Features: ●This is a square hole type product that is more resistant to vibration and can be fixed firmly. Specifications: ●Type: Horizontal square type ●Width (mm): 11 ●Height (mm): 28 ●Length (mm): 38 ●Screw dimensions: M4 ●A (mm): □12 ●B (mm): 14 ●H (mm): 14.5 ●C (mm): 11 ●K (mm): 7 ●F (mm): 20 ●W (mm): 38 ●G (mm): 30 ●2-φP (mm): 4.5 ●Tightening screw: M4 ●Square shaft for cantilever or parallel frame structure Material/Finish: ●Aluminum alloy
