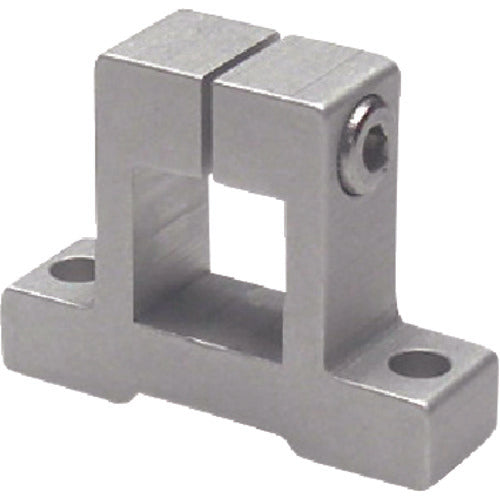

Miyoshi Machinery Pijon SQ16-600 SQ16-600 1 piece

Catalog number: SQ16-600 Features: ●This is a square hole type product that is more resistant to vibration and can be fixed firmly. Specifications: ●Type: Horizontal square type ●Width (mm): 15 ●Height (mm): 36 ●Length (mm): 48 ●Screw dimensions: M5 ●A (mm): □16 ●B (mm): 18 ●H (mm): 18.5 ●C (mm): 15 ●K (mm): 9 ●F (mm): 26 ●W (mm): 48 ●G (mm): 38 ●2-φP (mm): 5.5 ●Tightening screw: M5 ●Square shaft for cantilever or parallel frame structure Material/Finish: ●Aluminum alloy
