Miyoshi Machinery Pijon SQ20-235 SQ20-235 1 piece
Miyoshi Machinery Pijon SQ20-235 SQ20-235 1 piece
Regular price
¥3,826
Regular price
Sale price
¥3,826
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

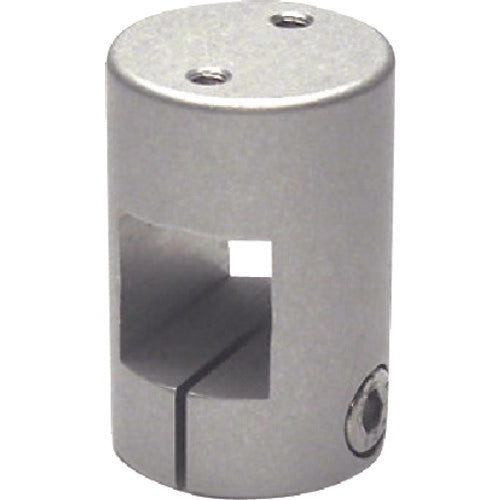

Catalog number: SQ20-235 Features: ●This is a square hole type product that is more resistant to vibration and can be firmly fixed. Specifications: ●Type: Square screw type ●Width (mm): 29 ●Height (mm): 46.5 ●Screw size: M5 ●A (mm): □20 ●B (mm): 25 ●D (φ): 29 ●E (mm): 21.5 ●G (mm): 15 ●2-M: 2-M5 ●Tightening screw: M5 ●2 screws (parallel to the axis) for mounting boards and functional equipment Material/Finish: ●Aluminum alloy
