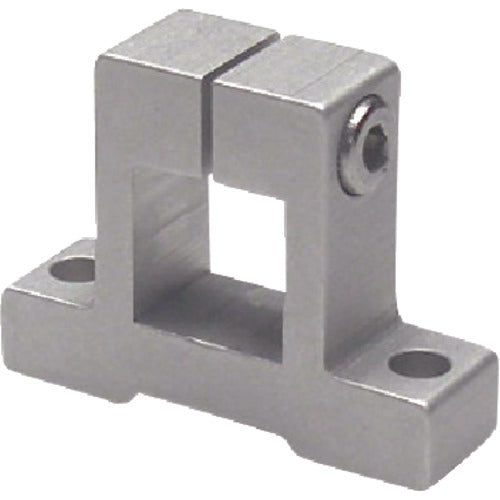

Miyoshi Machinery Pijon SQ25-600 SQ25-600 1 piece

Catalog number: SQ25-600 Features: ●This is a square hole type product that is more resistant to vibration and can be fixed firmly. Specifications: ●Type: Horizontal square type ●Width (mm): 25 ●Height (mm): 60 ●Length (mm): 75 ●Screw size: M6 ●A (mm): □25 ●B (mm): 35 ●H (mm): 25 ●C (mm): 25 ●K (mm): 12 ●F (mm): 42 ●W (mm): 75 ●G (mm): 58 ●2-φP (mm): 6.5 ●Tightening screw: M6 ●Square shaft for cantilever or parallel frame structure Material/Finish: ●Aluminum alloy
