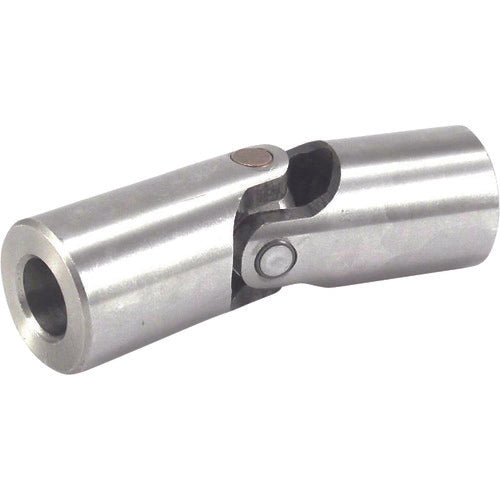

MIYOSHI KIKAI Universal Joint B-14 B-14 1 piece

Catalogue number: B-14 Features: ●This product can transmit torque at an angle. Applications: ●For popular high torque applications Specifications: ●Inner diameter (mm): 14 ●Maximum rotation speed (min-1): 950 ●Outer diameter (mm): 28 ●Effective shaft insertion dimension (mm): 31.5 ●Maximum transmission capacity (N・m): 88 ●Total length (mm): 94 ●Type: Powerful type B ●For popular high torque applications Material/Finish: ●S45C and others Notes: ●*Please request a separate quote if additional processing is required.
