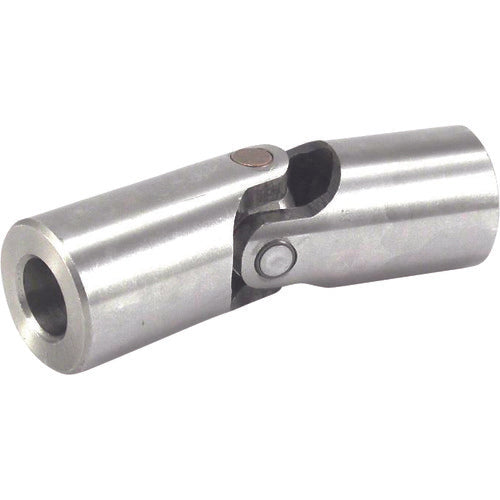

Miyoshi Machinery Universal Joint B-8 B-8 1 piece

Catalogue number: B-8 Features: ●Product that can transmit torque at an angle. Applications: ●For popular high torque applications Specifications: ●Inner diameter (mm): 8 ●Maximum rotation speed (min-1): 1500 ●Outer diameter (mm): 16 ●Effective shaft insertion dimension (mm): 19 ●Maximum transmission capacity (N・m): 18 ●Total length (mm): 56 ●Type: Powerful type B ●For popular high torque applications Material/Finish: ●S45C and others Notes: ●*Please request a separate quote if additional processing is required.
