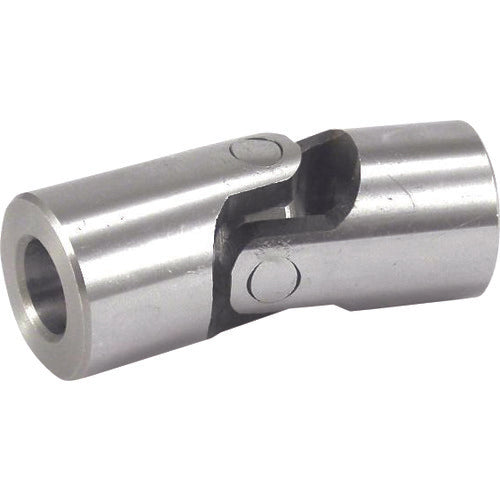

Miyoshi Machinery Universal Joint H-8 H-8 1 piece

Catalogue number: H-8 Features: ●Product that can transmit torque at an angle. Applications: ●High precision and durability Specifications: ●Inner diameter (mm): 8 ●Outer diameter (mm): 16 ●Length (mm): 50 ●Maximum allowable torque (N・m): 19 ●Total length (mm): 50 ●Type: Precision type H type ●Effective shaft insertion dimension (mm): 16.5 ●Maximum transmission capacity (N・m): 19 ●Maximum rotation speed (min-1): 1800 ●High precision and durability Materials/Finish: ●SCM435 and others Notes: ●*Please request a separate quote if additional processing is required.
