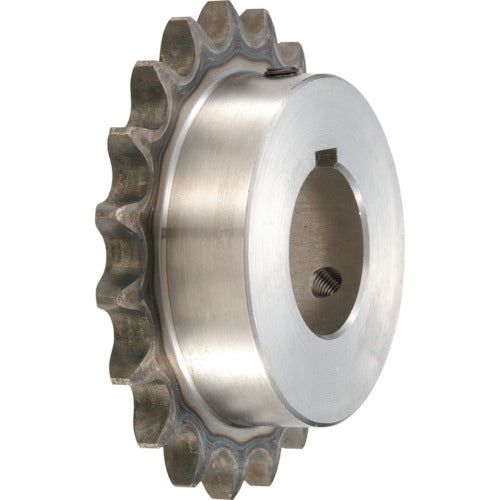

Sanko Manufacturing Co., Ltd. Sprocket with shaft hole processing MS35 type MS35B13D15 1 piece

Catalog number: MS35B13D15 Features: ●SANKO's MS series is a sprocket with shaft holes, keyways, and set screws machined for streamlining and labor saving. ●Reliable quality and stable precision means you can install it immediately after purchase. All tolerances are machined within JIS standards. Specifications: ●Number of teeth: 13 ●Outer diameter (mm): 44 ●Shaft hole diameter (mm): 15 ●Pitch diameter DP (mm): 39.8 ●Pos diameter BD (mm): 32 ●Pos length BL (mm): 20 ●A (mm): 6 Material/Finish: ●Carbon steel for machine construction ●Teeth: High-frequency hardened product
