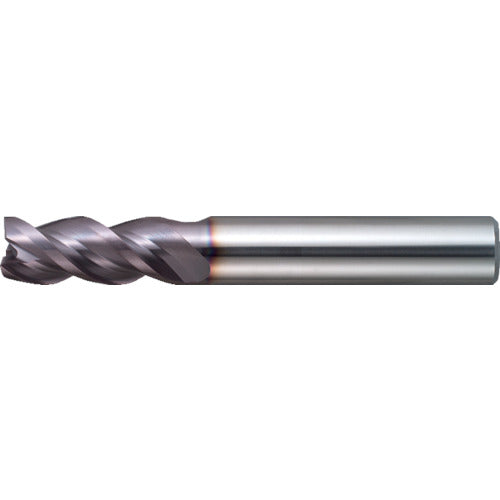

Mitsubishi K 3-blade M-star Throttle Carbide Square End Mill Medium Blade Length (M) 9.5 mm MSMHZDD0950 1 piece

Catalog number: MSMHZDD0950 Features: ●This series uses MS coating to achieve cost performance. ●A wide range of materials can be processed, from raw materials to high-hardness steel (about 50HRC) and difficult-to-cut materials. ●Processing time has been reduced by performing vertical feed and groove processing in one go. ●Improved chip removal performance has been achieved by adopting a unique gash shape and new groove shape. Applications: ●Cutting materials: carbon steel, alloy steel, high-hardness steel (up to 5HRC), stainless steel, etc. Specifications: ●Blade diameter (mm): 9.5 ●Blade length (mm): 19 ●Shank diameter (mm): 10 ●Total length (mm): 70 ●Surface treatment: (Al, Ti)N coating (MS) ●Twist angle 45° Material/Finish: ●Ultra-fine particle cemented carbide (UWC)
