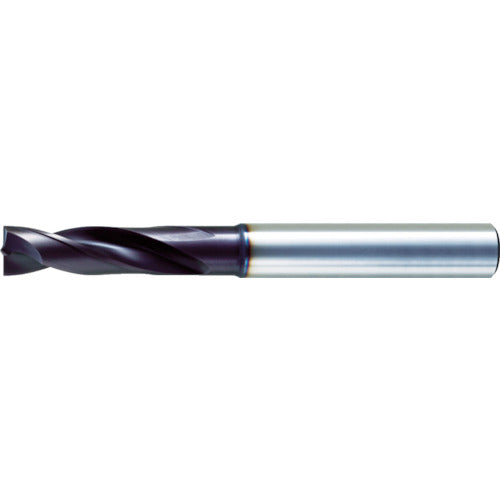

Mitsubishi K VAPDSCB Violet High-precision Countersinking Drill, Short, 2.5 mm, VAPDSCBD0250, 1 piece

Catalog number: VAPDSCBD0250 Features: ● A new blade shape allows for highly efficient counterboring. ● The tip shape has excellent chip breaking properties, so there is no need to take measures to prevent chips from wrapping around the tool. ● High-efficiency machining equivalent to that of conventional carbide end mills for counterboring is possible. Applications: ● Workpiece: Carbon steel, alloy steel, stainless steel, cast iron, light alloy. Specifications: ● Blade diameter (mm): 2.5 ● Groove length (mm): 13.0 ● Total length (mm): 60.2 ● Shank diameter (mm): 3.0 ● Effective machining depth: 1 to 1.5D (blade diameter x 1 to 1.5 times) ● Surface treatment: Violet coating (V) ● X-sinning tip: 118 degrees + 180 degrees Material/Finish: ● High-grade high-alloy high-speed steel (HG HSS)
