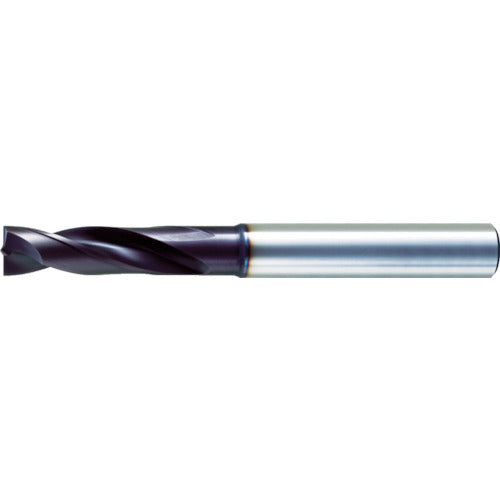

Mitsubishi K VAPDSCB Violet High-precision Countersinking High-speed Drill Short 7.5mm VAPDSCBD0750 1 piece

Catalog number: VAPDSCBD0750 Features: ● A new blade shape allows for highly efficient counterboring. ● The tip shape has excellent chip breaking properties, so there is no need to take measures to prevent chips from wrapping around the tool. ● Highly efficient machining equivalent to conventional carbide end mills for counterboring is possible. Applications: ● Workpiece: Carbon steel, alloy steel, stainless steel, cast iron, light alloy. Specifications: ● Blade diameter (mm): 7.5 ● Groove length (mm): 32.0 ● Total length (mm): 80.6 ● Shank diameter (mm): 8.0 ● Effective machining depth: 1 to 1.5D (blade diameter x 1 to 1.5 times) ● Surface treatment: Violet coating (V) ● X-sinning tip: 118 degrees + 180 degrees Material/Finish: ● High-grade high-alloy high-speed steel (HG HSS)
