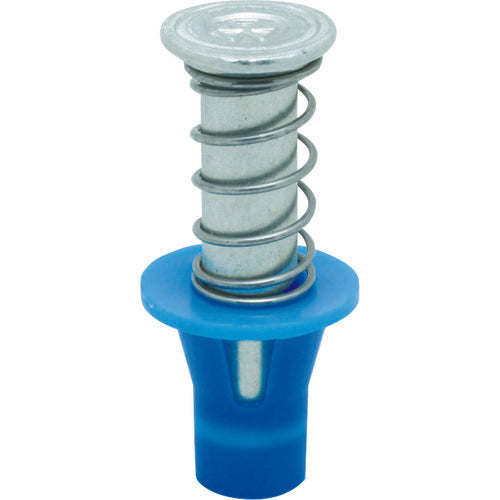

Sanmon Keystman Blue 300 pieces KM-3030-B 1 box

Catalogue number: KM-3030-B Features: ● A spring is used to secure the insert. ● It will not fall over even if stepped on. ● Installation can be done by simply inserting it by hand into a hole made with a drill or other tool. ● The color can be checked from above and below the deck. ● Ideal for equipment construction that requires hanging lightweight objects, such as electrical installation and disaster prevention. Applications: ● For general equipment. Specifications: ● Color: Blue ● Screw size: W3/8 ● Drill diameter (mm): 16 ● Effective embedment (mm): 32.5 ● Average pull-out force (kN): 14.6 ● Embedment (mm): 35 ● Effective thread: 13 ● Spring type ● Suitable formwork: Deck, keystone plate Material/Finish: ● Carbon steel for cold heading (JISG-3507) ● Nickel plating ● Polypropylene resin
