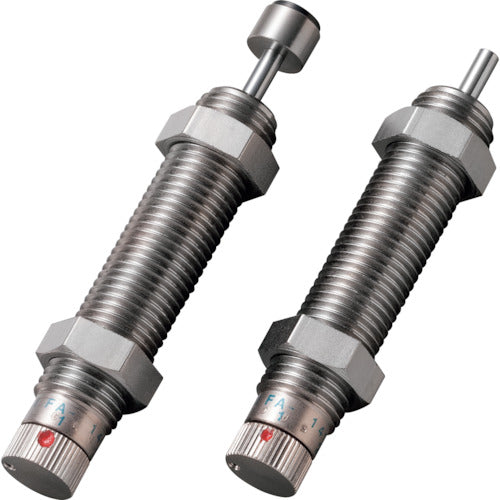

Fuji Latex Adjustable Shock Absorber FA-1410RB-S 1 piece

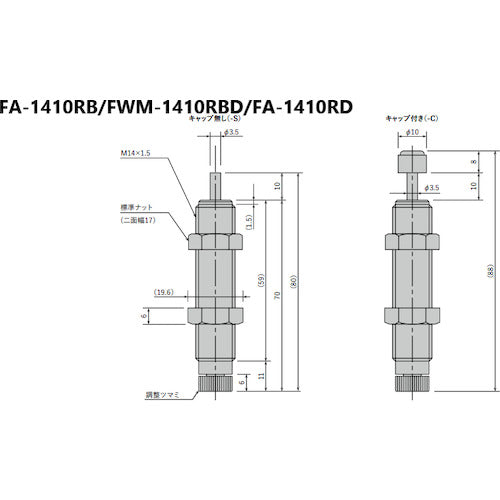

Catalog number: FA-1410RB-S Features: ●Adjustable shock absorber can be used under a wide range of operating conditions. ●Absorption characteristics can be adjusted. ●Orifice area can be fine-tuned. ●Except for some models, if the shock absorber is operated without an external stopper, the mother machine may be damaged due to bottoming. If an external stopper cannot be installed, be sure to use a stopper nut. ●The stopper nut that fits is different depending on whether it is with or without a cap. Please check and order the correct model. ●Adjust so that it stops 1 mm before the stroke end and securely fasten it with a nut. ●The side without the chamfer is the impact surface. Please be careful when installing. Applications: ●For shock absorption in the transportation and assembly processes of precision equipment, manufacturing lines, parts processing, electronic equipment, etc. Specifications: Stroke (mm): 10 Impact speed (m/s): 0.3-1.0 Thread size: M14 x 1.5 Type: Adjustable Maximum absorbed energy (J): 3.92 Cap: None Oil used: Silicone oil Operating temperature range ℃: -5-70 Piston rod return force N (kgf): 9.8 (1.0) or less Orifice type: Single hole Maximum absorbed energy (kgf・m): 0.4 Maximum resistance value N (kgf): 1813 (185) Maximum equivalent mass kg (kgf): 30 (30) Maximum usable cycle per minute cycle/min: 60 Maximum absorbed energy per minute J/min (kgf・m/min): 147 (15) Adjustable shock absorber Orifice type: Single hole Material/Finish: Steel Caution: Please read the instruction manual attached to the product carefully before use. Do not use in an environment where oil may splash on it or in a vacuum. ●Make sure that the soft absorber is not subjected to uneven load.
