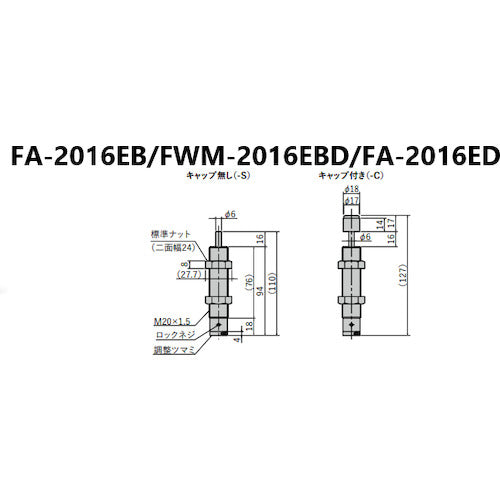

Fuji Latex Adjustable Shock Absorber FWM-2016EBD-S 1 piece

Catalog number: FWM-2016EBD-S Features: *Adjustable shock absorber can be used under a wide range of conditions. *Absorption characteristics can be adjusted. *Orifice area can be fine-tuned. Applications: *For shock absorption in the transportation and assembly processes of precision equipment, manufacturing lines, parts processing, electronic equipment, etc. Specifications: ●Stroke (mm): 16 ●Impact speed (m/s): 0.3 to 2.0 ●Thread size: M20 x 1.5 ●Type: Adjustable ●Maximum absorbed energy (J): 29.4 ●Cap: None ●Oil used: Silicone oil ●Operating temperature range °C: -5 to 70 ●Piston rod return force N (kgf): 18.1 (1.84) or less ●Orifice type: Multi-hole irregular ●Maximum absorbed energy (kgf・m): 3.0 ●Maximum resistance value N (kgf): 3528 (360) ●Maximum equivalent mass kg (kgf): 200 (200) ●Maximum usable cycles per minute cycle/min: 60 ●Maximum absorbed energy per minute J/min (kgf・m/min): 343 (35) ●Adjustable shock absorber ●Orifice type: Multi-hole irregular Material/Finish: ●Steel Caution: ●Before using, be sure to read the instruction manual attached to the product carefully. ●Do not use in an environment where it may come into contact with oil or in a vacuum. ●Make sure that the soft absorber is not subjected to uneven loads.
