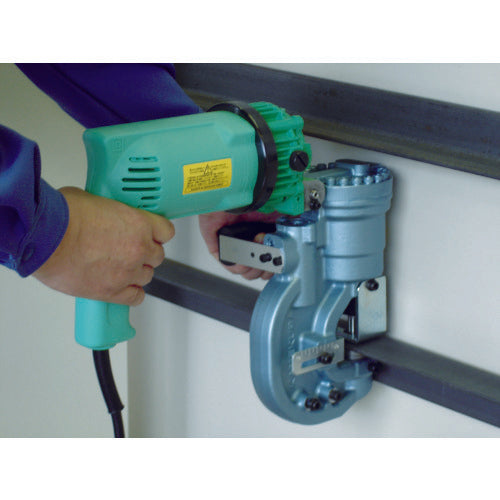

Kamekura Less Barrier Port Puncher (Double Action) RF-A3 1 unit

Catalog number: RF-A3 Features: ●Double-action auto-return mechanism that releases material smoothly. ●Can be used in small spaces, even when already installed on a wall or in a narrow, complicated area. (Body angle adjustable: vertical, 45°, 90°) ●Barrier-free double-action type puncher. ●Centered workpiece receiver for easy alignment. Applications: ●For drilling holes in steel sections such as angles, channels, and flat bars. ●For drilling holes in channel steel, angle steel, and flat bars. Specifications: ●Maximum drilling capacity (mm) Stainless steel: t6 x φ20 ●Maximum drilling capacity (mm) Iron: t9 x φ20 ●Through dimension (mm): 50 ●Output load (kN): 196 ●Output load (t): 20 ●Power cord length (m): 3 ●Rated current (A): 6 ●Output load kN (t): 196 (20) ●Frame depth: Shaft center to 50 mm ●Drilling time: Approximately 3 seconds ●Power supply: AC100V ●Power consumption (rated): 580W ●Double insulation ●Drive method: Electric hydraulic double-acting auto return ●Body dimensions: (Height) 484 x (Width) 133 x (Depth) 213 mm Material/Finish: ●Alloy steel Set contents/Accessories: ●Work stand ●Special wrench ●Hexagonal wrench ●Storage case ●Replacement blade: N-11, N-14, N-11X18, N-14X18 Note: ●*Capacity varies depending on the replacement blade size. ●The drilling thickness for replacement blades of Φ10 or less is 80% steel plate (SS400) and 50% stainless steel (SUS304) of the replacement blade size.
